Breeding value interpretation
Jinliang Yang
March 25, 2024
1 / 32

Breeding value and dominance deviation

Genotype
Value as deviated from M
Breeding Value
Dominance Deviation


A1A1
2q(α−qd)
2qα
−2q2d

A1A2
(q−p)α+2pqd
(q−p)α
2pqd

A2A2
−2p(α+pd)
−2pα
−2p2d

2 / 32

Breeding value and dominance deviation

Genotype	Value as deviated from $M$	Breeding Value	Dominance Deviation
$A_1A_1$	$2q(\alpha - qd)$	$2q\alpha$	$-2q^2d$
$A_1A_2$	$(q-p)\alpha + 2pqd$	$(q-p)\alpha$	$2pqd$
$A_2A_2$	$-2p(\alpha + pd)$	$-2p\alpha$	$-2p^2d$

G = A + D

The mean of the BV is zero
It follows that the mean dominance deviation is zero.

3 / 32

A Linear Regression PerspectiveG = A + DA repsents the breeding value (i.e., A = αi+αj)
D represents the dominance deviation
4 / 32

A Linear Regression Perspective

G = A + D

A repsents the breeding value (i.e., A = $\alpha_i + \alpha_j$ )
D represents the dominance deviation

Further breakdown A:

$\begin{align*} G = & \alpha_1N_1 + \alpha_2N_2 + \delta \end{align*}$

5 / 32

A Linear Regression Perspective

G = A + D

A repsents the breeding value (i.e., A = $\alpha_i + \alpha_j$ )
D represents the dominance deviation

Further breakdown A:

$\begin{align*} G = & \alpha_1N_1 + \alpha_2N_2 + \delta \end{align*}$

$\alpha_i$ is the average effect of allele $i$ and $\alpha = \alpha_1 - \alpha_2$
$N_i$ is the number of allele $i$ carried by the genotype
$N \in \{0, 1, 2\}$ for a bi-allelic locus and $N_1 + N_2 = 2$

6 / 32

A Linear Regression Perspective

G = A + D

A repsents the breeding value (i.e., A = $\alpha_i + \alpha_j$ )
D represents the dominance deviation

Further breakdown A:

$\begin{align*} G = & \alpha_1N_1 + \alpha_2N_2 + \delta \end{align*}$

$\alpha_i$ is the average effect of allele $i$ and $\alpha = \alpha_1 - \alpha_2$
$N_i$ is the number of allele $i$ carried by the genotype
$N \in \{0, 1, 2\}$ for a bi-allelic locus and $N_1 + N_2 = 2$

Therefore,

$\begin{align*} G = & \alpha_1N_1 + \alpha_2N_2 + \delta = \alpha_1N_1 + \alpha_2(2 - N_1) + \delta \\ = & 2\alpha_2 + (\alpha_1 - \alpha_2)N_1 + \delta \\ = & (2\alpha_2 + \delta) + \alpha N_1 \end{align*}$

7 / 32

Graphical Representation

Genotype	Value as deviated from $M$	Breeding Value	Dominance Deviation
$A_1A_1$	$2q(\alpha - qd)$	$2q\alpha$	$-2q^2d$
$A_1A_2$	$(q-p)\alpha + 2pqd$	$(q-p)\alpha$	$2pqd$
$A_2A_2$	$-2p(\alpha + pd)$	$-2p\alpha$	$-2p^2d$

An R function to calculate genotypic values

gfunction <- function(a=1, d=0, p=1/2){
   # a: additive effect
   # d: dominance effect
   # p: allele frequency for the A1 allele
   q = 1-p
   # allele sub effect
   alpha <- a + d*(q-p)
   a1a1 <- 2*alpha*q
   a1a2 <- (q-p)*alpha
   a2a2 <- -2*p*alpha
   # population mean
   M <- a*(p-q) + 2*d*p*q
   # return a data.frame with genotype values and breeding values
   return(data.frame(N1=c(0,1,2), gv=c(-a-M,d-M,a-M), bv=c(a2a2, a1a2, a1a1)))
}

8 / 32

Graphical Representation

Apply the R function

out <- gfunction(a=1, d=-1, p=1/3)
#out
out$dd <- out$gv - out$bv
out

##   N1         gv         bv         dd
## 1  0 -0.2222222 -0.4444444  0.2222222
## 2  1 -0.2222222  0.2222222 -0.4444444
## 3  2  1.7777778  0.8888889  0.8888889

9 / 32

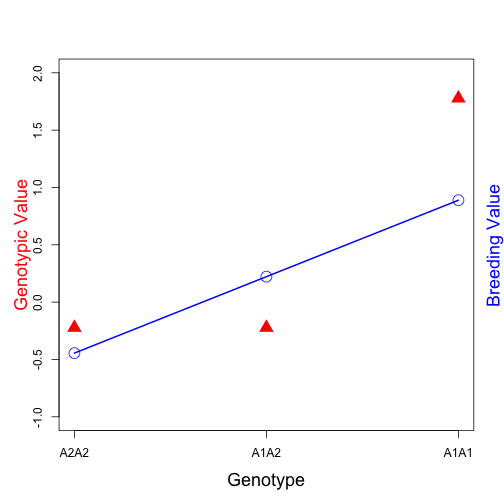

Plot the results

plot(out$N1, out$gv, xlab="Genotype", ylab="", ylim=c(-1, 2), cex.lab=1.5, xaxt="n", pch=17, cex=2, col="red");
# add the axis and labels
axis(1, at=c(0, 1, 2), labels=c("A2A2", "A1A2", "A1A1"));
# add y-axis title on the right side
mtext("Breeding Value", side = 4, line = 1, cex=1.5, col="blue");
# add y-axis title on the left side
mtext("Genotypic Value", side = 2, line = 2, cex=1.5, col="red")
# add breeding values
points(out$N1, out$bv, cex=2, col="blue")
# join the points by a line
lines(out$N1, out$bv, lwd=2, col="blue")

10 / 32

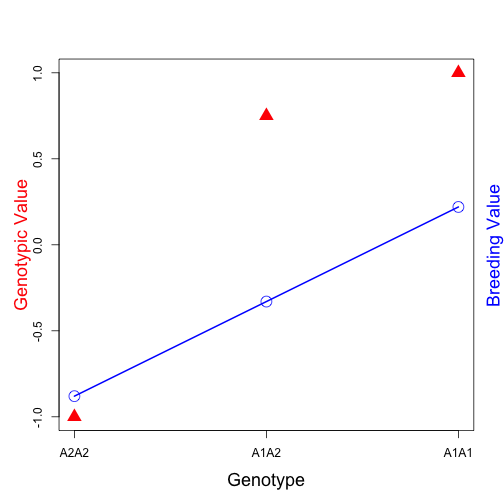

Graphical Representation

The relationship between genotypic values, breeding values and dominance deviations.

$\begin{align*} G = & 2\alpha_2 + \alpha N_1 + \delta \end{align*}$

11 / 32

Graphical Representation

The relationship between genotypic values, breeding values and dominance deviations.

$\begin{align*} G = & 2\alpha_2 + \alpha N_1 + \delta \end{align*}$

12 / 32

Graphical Representation

The relationship between genotypic values, breeding values and dominance deviations.

$\begin{align*} G = & 2\alpha_2 + \alpha N_1 + \delta \end{align*}$

The slope is the average effect of allele substitution.
- As $A_1$ is substituted by $A_2$ , the breeding value increaes at a rate equal to $\alpha$ .
Dominance can be seen as residuals from the fitted regression line.
- Dominance deviation are the differences between the genotypic values and breeding values.

13 / 32

Predicting BV: a real-world data

# read phenotype and genotype data
flowering <- read.table("https://jyanglab.com/slides/flowering.csv",
                        sep=",", header=TRUE)
dim(flowering)

## [1] 413   7

head(flowering)

##   FID IID Flowering_time snp1 snp2 snp3     type
## 1  F1   1       85.08333    2    2    1 training
## 2  F2   3      101.50000    2    2    2 training
## 3  F3   4      106.50000    2    2    2 training
## 4  F4   5       99.50000    2    2    2 training
## 5  F5   6       95.08333    1    1    1 training
## 6  F6   7      111.00000    1    1    1 training

table(flowering$type)

##
##     test training
##       63      350

f <- subset(flowering, type == "training")

14 / 32

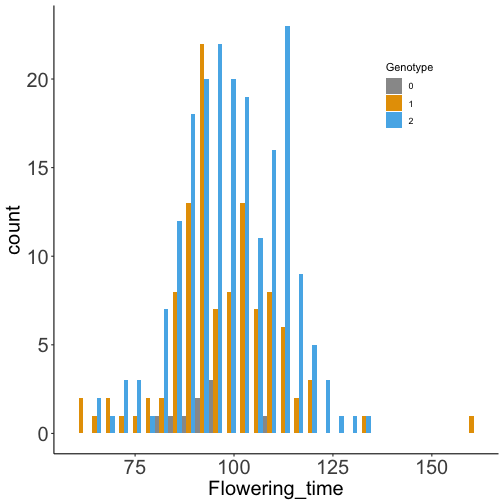

Visualize the phenotypic data

library(ggplot2)
p <- ggplot(f, aes(x=Flowering_time, fill=as.factor(snp1))) +
  geom_histogram(position="dodge")+
  # Use brewer color palettes
  scale_fill_manual(values=c("#999999", "#E69F00", "#56B4E9")) +
  guides(fill=guide_legend(title="Genotype")) +
  theme_classic() +
  theme(legend.position=c(0.8, 0.8), axis.text=element_text(size=20),
              axis.title=element_text(size=20))
p

15 / 32

A real-world data

Let's find out the breeding value for each individual.

16 / 32

A real-world data

Let's find out the breeding value for each individual.

Training

Step1: For each SNP, find out $a, d, p$ , and $M$
Step2: Compute average effect for A1 and A2

17 / 32

A real-world data

Let's find out the breeding value for each individual.

Training

Step1: For each SNP, find out $a, d, p$ , and $M$
Step2: Compute average effect for A1 and A2

Prediction

Step3: Sum up the BV of all SNPs

18 / 32

Training

Step1: For each SNP, find out $a$ , $d$ , $p$ , and $M$

The number of copies of the A1 allele:

A1A1 -> 2
A1A2 -> 1
A2A2 -> 0

A1A1 <- mean(subset(f, snp1 == 2)$Flowering_time, na.rm=TRUE)
A1A2 <- mean(subset(f, snp1 == 1)$Flowering_time, na.rm=TRUE)
A2A2 <- mean(subset(f, snp1 == 0)$Flowering_time, na.rm=TRUE)
A1A1

## [1] 99.13419

A1A2

## [1] 96.27799

A2A2

## [1] 92.94753

19 / 32

Training

Step1: For each SNP, find out $a$ , $d$ , $p$ , and $M$

### mid point
m <- (A1A1 + A2A2)/2
a <- A1A1 - m
d <- A1A2 - m

20 / 32

Training

Step1: For each SNP, find out $a, d$ , $p$ , and $M$

Allele freq for A1 (Note it is in 2 coding)

table(f$snp1)

##
##   0   1   2
##  10 124 216

21 / 32

Training

Step1: For each SNP, find out $a, d$ , $p$ , and $M$

Allele freq for A1 (Note it is in 2 coding)

table(f$snp1)

##
##   0   1   2
##  10 124 216

getp <- function(df=f$snp1){
  t <- as.data.frame(table(df))
  c11 <- subset(t, df==2)$Freq
  c12 <- subset(t, df==1)$Freq
  c22 <- subset(t, df==0)$Freq
  return((2*c11+c12)/(2*c11+2*c12 +2*c22))
}
p <- getp(df=f$snp1)
p

## [1] 0.7942857

q <- 1 -p

22 / 32

Get population mean

Step1: For each SNP, find out $a, d$ , $p$ , and $M$

M1 <- mean(f$Flowering_time, na.rm=T)
M1

## [1] 97.96743

M2 <- a*(p-q) + 2*d*p*q
M2

## [1] 1.898136

M1 - M2

## [1] 96.0693

## [1] 96.04086

23 / 32

TrainingStep2: Average effect for A1 and A2

Genotype
Value as deviated from M
Breeding Value
Dominance Deviation


A1A1
2q(α−qd)
2qα
−2q2d

A1A2
(q−p)α+2pqd
(q−p)α
2pqd

A2A2
−2p(α+pd)
−2pα
−2p2d

24 / 32

Training

Step2: Average effect for A1 and A2

Genotype	Value as deviated from $M$	Breeding Value	Dominance Deviation
$A_1A_1$	$2q(\alpha - qd)$	$2q\alpha$	$-2q^2d$
$A_1A_2$	$(q-p)\alpha + 2pqd$	$(q-p)\alpha$	$2pqd$
$A_2A_2$	$-2p(\alpha + pd)$	$-2p\alpha$	$-2p^2d$

# allele sub effect
alpha <- a + d*(q-p)
a1a1 <- 2*alpha*q
a1a2 <- (q-p)*alpha
a2a2 <- -2*p*alpha

25 / 32

Training

Step2: Average effect for A1 and A2

Genotype	Value as deviated from $M$	Breeding Value	Dominance Deviation
$A_1A_1$	$2q(\alpha - qd)$	$2q\alpha$	$-2q^2d$
$A_1A_2$	$(q-p)\alpha + 2pqd$	$(q-p)\alpha$	$2pqd$
$A_2A_2$	$-2p(\alpha + pd)$	$-2p\alpha$	$-2p^2d$

# allele sub effect
alpha <- a + d*(q-p)
a1a1 <- 2*alpha*q
a1a2 <- (q-p)*alpha
a2a2 <- -2*p*alpha

Apply the previous gfunction to get BV for snp1

out2 <- gfunction(a=a, d=d, p=p)
out2

##   N1        gv        bv
## 1  0 -4.991466 -4.692268
## 2  1 -1.661012 -1.738502
## 3  2  1.195194  1.215264

26 / 32

Repeat the process for snp2 and snp3

bv <- function(f, snpid="snp1", trait="Flowering_time"){
  A1A1 <- mean(f[f[, snpid]==0, trait], na.rm=TRUE)
  A1A2 <- mean(f[f[, snpid]==1, trait], na.rm=TRUE)
  A2A2 <- mean(f[f[, snpid]==2, trait], na.rm=TRUE)
  m <- (A1A1 + A2A2)/2
  a <- A1A1 - m
  d <- A1A2 - m
  p <- getp(df=f[, snpid])
  q <- 1 -p
  alpha <- a + d*(q-p)
  a1a1 <- 2*alpha*q
  a1a2 <- (q-p)*alpha
  a2a2 <- -2*p*alpha
  M <- a*(p-q) + 2*d*p*q
  out <- data.frame(N1=c(0,1,2), gv=c(-a-M,d-M,a-M), bv=c(a2a2, a1a2, a1a1))
  return(out)
}
bv(f, snpid="snp1", trait="Flowering_time")

##   N1        gv        bv
## 1  0  4.836486  5.135684
## 2  1  1.980280  1.902789
## 3  2 -1.350175 -1.330105

27 / 32

Prediction

Step3: Sum up the BV of all SNPs

BV is the sum of the average effects of the alleles an individual carries.

$\begin{align*} BV = \sum_{i=1}^k\sum_{j=1}^2\alpha_{ij} \end{align*}$

Where summation occurs across the number of loci ( $k$ ) and the two alleles present at each locus.

28 / 32

Prediction

Step3: Sum up the BV of all SNPs

BV is the sum of the average effects of the alleles an individual carries.

$\begin{align*} BV = \sum_{i=1}^k\sum_{j=1}^2\alpha_{ij} \end{align*}$

Where summation occurs across the number of loci ( $k$ ) and the two alleles present at each locus.

b1 <- bv(f, snpid="snp1", trait="Flowering_time")
b2 <- bv(f, snpid="snp2", trait="Flowering_time")
b3 <- bv(f, snpid="snp3", trait="Flowering_time")
b3

##   N1        gv        bv
## 1  0  1.153707  2.405023
## 2  1  1.225328  0.640331
## 3  2 -1.397850 -1.124361

29 / 32

Prediction

Step3: Sum up the BV of all SNPs

t <- subset(flowering, type=="test")
dim(t)

## [1] 63  7

head(t, 4)

##      FID IID Flowering_time snp1 snp2 snp3 type
## 351 F351  52             NA    2    2    0 test
## 352 F352  54       118.8333    1    2    2 test
## 353 F353  62             NA    2    1    2 test
## 354 F354  64             NA    2    2    2 test

30 / 32

Prediction

Step3: Sum up the BV of all SNPs

t <- subset(flowering, type=="test")
dim(t)

## [1] 63  7

head(t, 4)

##      FID IID Flowering_time snp1 snp2 snp3 type
## 351 F351  52             NA    2    2    0 test
## 352 F352  54       118.8333    1    2    2 test
## 353 F353  62             NA    2    1    2 test
## 354 F354  64             NA    2    2    2 test

BV for individual F356:

b1[b1$N1 ==2, ]$bv + b2[b2$N1 ==2, ]$bv + b3[b3$N1 ==2, ]$bv + M1

## [1] 95.48984

31 / 32

Prediction

Step3: Sum up the BV of all SNPs

mygs <- function(t, b1, b2, b3){
  t$yhat <- -9
  for(i in 1:nrow(t)){
    t$yhat[i] <- b1[b1$N1 == t$snp1[i], ]$bv + b2[b2$N1 == t$snp2[i], ]$bv + b3[b3$N1 == t$snp3[i], ]$bv
  }
  return(t)
}
out <- mygs(t, b1, b2, b3)
out <- subset(out, !is.na(Flowering_time))
cor.test(out$Flowering_time, out$yhat+M1)

##
##     Pearson's product-moment correlation
##
## data:  out$Flowering_time and out$yhat + M1
## t = -1.1976, df = 55, p-value = 0.2362
## alternative hypothesis: true correlation is not equal to 0
## 95 percent confidence interval:
##  -0.4032380  0.1055306
## sample estimates:
##        cor
## -0.1594208

32 / 32

↑, ←, Pg Up, k	Go to previous slide
↓, →, Pg Dn, Space, j	Go to next slide
Home	Go to first slide
End	Go to last slide
Number + Return	Go to specific slide
b / m / f	Toggle blackout / mirrored / fullscreen mode
c	Clone slideshow
p	Toggle presenter mode
t	Restart the presentation timer
?, h	Toggle this help

Breeding value interpretation

Jinliang Yang

March 25, 2024

Breeding value and dominance deviation

Breeding value and dominance deviation

G = A + D

A Linear Regression Perspective

G = A + D

A Linear Regression Perspective

G = A + D

Further breakdown A:

A Linear Regression Perspective

G = A + D

Further breakdown A:

A Linear Regression Perspective

G = A + D

Further breakdown A:

Graphical Representation

Graphical Representation

Apply the R function

Plot the results

Graphical Representation

Graphical Representation

Graphical Representation

Predicting BV: a real-world data

Visualize the phenotypic data

A real-world data

A real-world data

Training

Step1: For each SNP, find out a,d,pa, d, p, and MM

Step2: Compute average effect for A1 and A2

A real-world data

Training

Step1: For each SNP, find out a,d,pa, d, p, and MM

Step2: Compute average effect for A1 and A2

Prediction

Step3: Sum up the BV of all SNPs

Training

Step1: For each SNP, find out aa, dd, pp, and MM

Training

Step1: For each SNP, find out aa, dd, pp, and MM

Training

Step1: For each SNP, find out a,da, d, pp, and MM

Training

Step1: For each SNP, find out a,da, d, pp, and MM

Get population mean

Step1: For each SNP, find out a,da, d, pp, and MM

Training

Step2: Average effect for A1 and A2

Training

Step2: Average effect for A1 and A2

Training

Step2: Average effect for A1 and A2

Repeat the process for snp2 and snp3

Prediction

Step3: Sum up the BV of all SNPs

Prediction

Step3: Sum up the BV of all SNPs

Prediction

Step3: Sum up the BV of all SNPs

Prediction

Step3: Sum up the BV of all SNPs

Prediction

Step3: Sum up the BV of all SNPs

Breeding value and dominance deviation

Help

Step1: For each SNP, find out $a, d, p$ , and $M$

Step1: For each SNP, find out $a, d, p$ , and $M$

Step1: For each SNP, find out $a$ , $d$ , $p$ , and $M$

Step1: For each SNP, find out $a$ , $d$ , $p$ , and $M$

Step1: For each SNP, find out $a, d$ , $p$ , and $M$

Step1: For each SNP, find out $a, d$ , $p$ , and $M$

Step1: For each SNP, find out $a, d$ , $p$ , and $M$
