# Genomic Selection in Practice
### Jinliang Yang
### April 14, 2022

---

# RR-BLUP vs. QTL mapping

In RR-BLUP, usually, the number of markers ( `$p$` ) is greatly larger than observation ( `$n$` ), or `$p >> n$`
  - a large p, small n problem

### Shrinkage

The marker effects with RR-BLUP are __shrinkage toward zero__.

- Modeling `$V_{M_i}$` as constant across all loci caused an overshrinkage of effects for markers close to major QTL (large effect QTL).

- And an undershrinkage of effects for markers close to minor QTL.
> Meuwissen et al., 2001.

Furthermore, for a given QTL, several marker loci will capture its effect if using the RR-BLUP method.

---
# GBLUP vs. RR-BLUP

### GBLUP

Using genome-wide markers to quantify the amount of information extracted from relatives.

### RR-BLUP

Quantifying the effects of genome-wide markers from a population of related individuals.

----------

Theory has shown that GBLUP and RR-BLUP are equivalent:
- If the number of QTL is large
- No major QTL are present
- And the QTL are evenly distributed across the genome
> Fernando, 1998; Habier et al., 2007; Goddard, 2009.

---

# Framework of GS

#### Model training
In the context of GS, the lines with both genotype and phenotype data constitute a __training population__. => `$\mathbf{\hat{m}}$`

#### Prediction
Predict the performance of the untested lines using their genotype data.
`$\mathbf{\hat{y}} = \mathbf{1}\mu + \mathbf{Z} \mathbf{\hat{m}}$`

---

# Framework of GS

In the model training process, a __cross-validation__ method will be used within the training population.

- __k-fold__ cross-validation
  - The training population is divided in `$k$` sets (i.e., 5-fold).

- __delete-one__ (or __leave-one-out__) cross-validation
  - Use `$n-1$` to train the model.

### Prediction accuracy

The prediction accuracy (denoted by `$r_{MG}$`) is the correlation between the true genotypic value and the genotypic value predicted from marker effects.

---

# A real world example: Loblolly pine data

Loblolly pine (Pinus taeda) data
>Resende Jr. et al. (2012) ([DOI: 10.1534/genetics.111.137026](http://dx.doi.org/10.1534/genetics.111.137026))

- __Mating Design__: 70 full-sib families and 951 individuals in total using _a circular mating design_
- __Phenotyping__: 17 traits with distinct heritabilities and genetic architectures
- __Genotyping__: with 4,853 SNPs using the SNP array method.
  - The full dataset can be downloaded from the paper.

---

# A real world example: Loblolly pine data

In this example, we will use the breeding values of crown width across the planting beds at age 6 (CWAC6).

```r
# read phenotype and SNP files
pheno_file <- "https://jyanglab.com/img/data/DATA_nassau_age6_CWAC.csv"
geno_file <- "https://jyanglab.com/img/data/Snp_Data.csv"
pheno <- read.csv(pheno_file, header=TRUE, stringsAsFactors = FALSE)

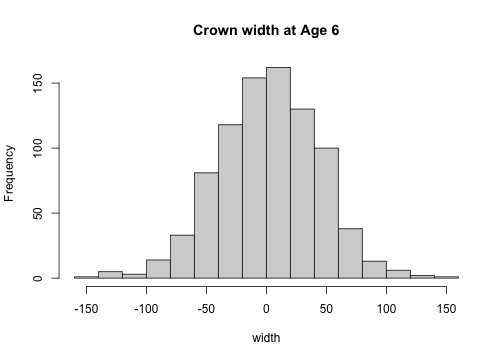

hist(pheno$Derregressed_BV, main="Crown width at Age 6", xlab="width")
```

![](w13lab_gs2_files/figure-html/unnamed-chunk-1-1.png)

---
# Loblolly pine data

### Remove missing phenotypes

There are some accessions containing no phenotype. We need to remove these accessions first.

```r
na.index <-  which(is.na(pheno$Derregressed_BV))
# length(na.index)
pheno <- pheno[-na.index, ]
# Keep genotypes for these remaining lines
geno <- geno[geno$Genotype %in% pheno$Genotype, ]

# phenotypes
y <- pheno$Derregressed_BV
y <- matrix(y, ncol=1)

# markers
geno <- geno[,-1] # 861 x 4853
geno[geno == -9] <- NA
```

---
# Genotype data: SNP quality control

In the `geno` matrix, row indicates individual, column indicates SNPs.

### Missingness and MAF

```r
geno <- read.csv(geno_file, header=TRUE, stringsAsFactors = FALSE)
dim(geno)

# Keep genotypes for these remaining lines
geno <- geno[geno$Genotype %in% pheno$Genotype, ]
# markers
geno <- geno[,-1] # 861 x 4853
geno[geno == -9] <- NA

# missing rate
missing <- apply(geno, 2, function(x){sum(is.na(x))/length(x)})
# minor allele frequency
maf <- apply(geno, 2, function(x){
  frq <- mean(x, na.rm=TRUE)/2 # 1 allele
  return(ifelse(frq > 0.5, 1-frq, frq))
})
```

---
# Genotype data: SNP quality control

In the `geno` matrix, row indicates individual, column indicates SNPs.

#### Plot the results

```r
hist(missing, breaks=100, col="blue", xlab="SNP Missing rate")
hist(maf, breaks=100, col="blue", xlab="Minor Allele Freq")
```

---
# SNP quality control

Removing SNPs with high missing rate (missingness > 0.2) and low MAF (MAF < 0.05)

- Question: How many markers are removed?

```r
idx1 <- which(missing > 0.2) #154
idx2 <- which(maf < 0.05) #1647
idx <- unique(c(idx1, idx2)) #1784

geno2 <- geno[, -idx]
dim(geno2)
```

---
# SNP quality control

### Missing marker imputation

Replace missing marker genotypes with __mean values__. Then store the marker genotypes in a matrix object `Z`.

```r
Z <- matrix(0, ncol=ncol(geno2), nrow=nrow(geno2))
for (j in 1:ncol(geno2)){
  #cat("j = ", j, '\n')
  Z[,j] <- ifelse(is.na(geno2[,j]), mean(geno2[,j], na.rm=TRUE), geno2[,j])
}
# sum(is.na(Z))
write.table(Z, "data/Z.txt", sep="\t", row.names = FALSE,
            col.names=FALSE, quote=FALSE)
```

---

# Genomic relationship

### SNP Matrix standardization

Standardize the genotype matrix to have a mean of zero and variance of one. Save this matrix as `Zs`.

```r
Zs <- scale(Z, center = TRUE, scale = TRUE)
# dimensions
n <- nrow(Zs)
m <- ncol(Zs)
```

---

# Genomic relationship

### Calcualte genomic relationship

- Compute the second genomic relationship matrix of [VanRaden (2008)](https://www.ncbi.nlm.nih.gov/pubmed/18946147) using the entire markers.
- Then add a very small positive constant (e.g., 0.001) to the diagonal elements so that `G` matrix is invertible.

```r
# Given matrices x and y as arguments, return a matrix cross-product.
# This is formally equivalent to (but usually slightly faster than)
# the call t(x) %*% y (crossprod) or x %*% t(y) (tcrossprod).
G <- tcrossprod(Zs) / ncol(Zs)
# G <- Zs %*% t(Zs) /ncol(Zs)
G <- G + diag(n)*0.001
```

---

# Solve MME for GBLUP

Set up mixed model equations (MME) by fitting the model:

`$$\mathbf{y = 1\mu + Zu + e}$$`

- where `$\mu$` is the intercept,
- `$\mathbf{Z}$` is the incident matrix of individuals,
- `$\mathbf{u}$` is the breeding value of the individuals,
- and `$\mathbf{e}$` is the residual.

Directly take the inverse of LHS to obtain the solutions for GBLUP. Report the estimates of intercept and additive genetic values. Use `$\lambda = 1.35$`.

```r
lambda <- 1.35 # fit$Ve / fit$Vm
Ginv <- solve(G)
ones <- matrix(1, ncol=1, nrow=n)
Z <- diag(n)
# Given matrices x and y as arguments, return a matrix cross-product.
#This is formally equivalent to (but usually slightly faster than)
#the call t(x) %*% y (crossprod) or x %*% t(y) (tcrossprod).
LHS1 <- cbind(crossprod(ones), crossprod(ones, Z))
LHS2 <- cbind(crossprod(Z, ones), crossprod(Z) +  Ginv*lambda)
LHS <- rbind(LHS1, LHS2)
RHS <- rbind( crossprod(ones, y), crossprod(Z,y) )
sol <- solve(LHS, RHS)
head(sol)
tail(sol)
```

---

# R package: `rrBLUP`

Fit GBLUP by using the `mixed.solve` function in the [rrBLUP](https://cran.r-project.org/web/packages/rrBLUP/index.html) R package.

- Report the estimates of intercept and additive genetic values.
- Do they agree with previous estimates?
- Also, report the estimated genomic heritability and the ratio of variance components `$\lambda = \frac{V_e}{V_A}$`.

```r
#install.packages("rrBLUP")
library(rrBLUP)
fit <- mixed.solve(y = y, K=G)
# additive genetic variance
fit$Vu
# residual variance
fit$Ve
# intercept
fit$beta
# additive genetic values
head(fit$u)
tail(fit$u)
# genomic h2
fit$Vu / (fit$Vu + fit$Ve)
# ratio of variance components
fit$Ve / fit$Vu
# plot(x=sol[-1], y=fit$u)
```

---

# RR-BLUP

Set up mixed model equations (MME) by fitting the model `$\mathbf{y = 1b + Zm + e}$`, where `$\mathbf{b}$` is the intercept, `$\mathbf{Z}$` is the standardized marker genotypes (`Zs`), `$\mathbf{m}$` is the additive marker genetic effects, and `$\mathbf{e}$` is the residual.

`\begin{align*}
  \begin{bmatrix}
    \mathbf{\hat{b}} \\
    \mathbf{\hat{m}} \\
  \end{bmatrix}
  =
  \begin{bmatrix}
    \mathbf{X^{'}R^{-1}X} & \mathbf{X^{'}R^{-1}Z} \\
    \mathbf{Z^{'}R^{-1}X} & \mathbf{Z^{'}R^{-1}Z} + \mathbf{I} V_e/V_{M_i} \\
  \end{bmatrix}^{-1}
  \begin{bmatrix}
    \mathbf{X^{'}R^{-1}y} \\
    \mathbf{Z^{'}R^{-1}y} \\
  \end{bmatrix}
\end{align*}`

Directly take the inverse of LHS to obtain the solutions for marker-based GBLUP (RR-BLUP). Report the estimates of intercept and marker additive genetic effects. Use `$\lambda = 4326.212$`.

```r
lambda <- 4326.212 # fit$Ve / fit$Vu
ones <- matrix(1, ncol=1, nrow=n)
I <- diag(m)
LHS1 <- cbind(crossprod(ones), crossprod(ones, Zs))
LHS2 <- cbind(crossprod(Zs, ones), crossprod(Zs) +  I*lambda)
LHS <- rbind(LHS1, LHS2)
RHS <- rbind( crossprod(ones, y), crossprod(Zs,y) )
sol2 <- solve(LHS, RHS)
head(sol2)
tail(sol2)
```

---

# Use `rrBLUP` package

Fit RR-BLUP by using the `mixed.solve` function in the [rrBLUP](https://cran.r-project.org/web/packages/rrBLUP/index.html) R package.

- Report the estimates of intercept and marker additive genetic effects.
- o they agree with the estimates with the manual calculation?
- Also, report the ratio of variance components `$\lambda = \frac{V_e}{V_A}$`.

```r
library(rrBLUP)
fit2 <- mixed.solve(y = y, Z=Zs)
# marker additive genetic variance
fit2$Vu
# residual variance
fit2$Ve
# intercept
fit2$beta
# marker additive genetic effects
head(fit2$u)
tail(fit2$u)
# ratio of variance components
fit2$Ve / fit2$Vu

# plot(x=sol2[-1], y=fit2$u)
```

---

# K-fold validation

Repeat GBLUP but treat the first 600 individuals as a training set and predict the additive genetic values of the remaining individuals in the testing set.
- What is the predictive correlation in the testing set? Use `$\lambda = 1.348411$`.

```r
n.trn <- 600
n.tst <- 261
y.trn <- y[1:n.trn]
y.tst <- y[n.trn+1:n.tst]
Zs.trn <- Zs[1:n.trn,]
Zs.tst <- Zs[n.trn+1:n.tst,]

Gtrn <- tcrossprod(Zs.trn) / ncol(Zs.trn)
Gtrn <- Gtrn + diag(n.trn)*0.001
Gtst.trn <- tcrossprod(Zs.tst, Zs.trn) / ncol(Zs.tst)
#Gtrn <- G[1:n.trn, 1:n.trn]
#Gtst.trn <- G[n.trn+1:n.tst, 1:n.trn]

lambda <- 1.348411 # fit$Ve / fit$Vu
Ginv.trn <- solve(Gtrn)
ones <- matrix(1, ncol=1, nrow=n.trn)
Z <- diag(n.trn)
LHS1 <- cbind(crossprod(ones), crossprod(ones, Z))
LHS2 <- cbind(crossprod(Z, ones), crossprod(Z) +  Ginv.trn*lambda)
LHS <- rbind(LHS1, LHS2)
RHS <- rbind( crossprod(ones, y.trn), crossprod(Z,y.trn) )
sol.trn <- solve(LHS, RHS)

# prediction
y.hat <- Gtst.trn %*% Ginv.trn %*% matrix(sol.trn[c(2:(n.trn+1))])
cor(y.hat, y[(n.trn+1):n])
# plot(y.hat, y[(n.trn+1):n])
```

---

# K-fold validation

Repeat RR-BLUP but treat the first 600 individuals as a training set and predict the additive genetic values of the remaining individuals in the testing set.
- What is the predictive correlation in the testing set? Use `$\lambda = 4326.212$`.
- Also, compare this predictive correlation to the one from GBLUP.

```r
Zs.trn <- Zs[1:n.trn, ]
Zs.tst <- Zs[n.trn+1:n.tst, ]
lambda <- 4326.212 # fit$Ve / fit$Vu
ones <- matrix(1, ncol=1, nrow=n.trn)
I <- diag(m)
LHS1 <- cbind(crossprod(ones), crossprod(ones, Zs.trn))
LHS2 <- cbind(crossprod(Zs.trn, ones), crossprod(Zs.trn) +  I*lambda)
LHS <- rbind(LHS1, LHS2)
RHS <- rbind( crossprod(ones, y.trn), crossprod(Zs.trn, y.trn) )
sol.trn <- solve(LHS, RHS)

# prediction
y.hat2 <- Zs.tst %*% matrix(sol.trn[-1])
# cor(y.hat2, y[(n.trn+1):n])
# plot(y.hat2, y[(n.trn+1):n])
```
