Statistical Foundations

class: center, middle, inverse, title-slide

# Statistical Foundations
### Jinliang Yang
### Oct. 3th, 2022

---

# Population Genetics vs. Quantitative genetics?

### Population genetics
- `Pop-gen` is the study of **evolution**.

- The language of `pop-gen` is **Mathematics**.

### Quantitative genetics
- `Quant-gen` is the study of the **complex trait**, or **phenotype**.
- The language of `Quant-gen` is **Statistics**.

---
# Quantitative genetics almost synonymous with statistics

.pull-left[
<div align="center">
<img src="fisher.jpg" height=150>
</div>
- __R. A. Fisher__ is a founder of quantitative genetics but also of analysis of variance and randomization procedures in statistics.
]

.pull-right[
<div align="center">
<img src="Karl_Pearson_1912.jpg" height=150>
</div>
- The early geneticist __Karl Pearson__ originated the concepts of regression and correlation.
]

In the next couple weeks, we will be deeply involved with the statistical evalution of the basic quantiative genetic models.

---
# Quantitative genetics vs. statistics

- Many genetic factors

- Determining the quantitative traits are almost always __normally distributed__

- Genetic factors act in pairs (two alleles per locus)
  - __Explanatory variables__
  - Each with two or three __levels of variation__

--

- Passed on to progeny at random

- __Random events__

--

- Genetic factors sometimes show independent assortment

- __Independence__

---
# Quantitative traits: statistical notation

#### Conceptual Notation
<center>
<div>
<img src="diversity.jpg" width=200 height=100>
=
<img src="SNPs.png" width=100 height=100 > + error
</div>
</center>

--
#### Matrix Notation
`\begin{align*}
\underbrace{\begin{bmatrix}
Y_1\\
Y_2\\
\vdots \\
Y_n\end{bmatrix}}_{n \times 1}
&= \underbrace{\begin{bmatrix}
   X_{11} & X_{12} & \cdots & X_{1m} \\
    X_{21} & X_{22} & \cdots & X_{2m} \\
    \vdots & \vdots & \ddots & \vdots \\
    X_{n1} & X_{n2} & \cdots & X_{nm}
\end{bmatrix}}_{n \times m} \quad
\underbrace{\begin{bmatrix}
a_1\\
a_2\\
\vdots \\
a_m\end{bmatrix}}_{m \times 1}
+\underbrace{\begin{bmatrix}
\epsilon_1\\
\epsilon_2\\
\vdots \\
\epsilon_m\end{bmatrix}}_{n \times 1}
\end{align*}`

--
#### Statistical Notation
`\begin{align*}
Y_{i} = \sum\limits_{j=1}^{j=m} X_{ij} \alpha_{j} + \epsilon_i
\end{align*}`

---
# Why the normal distribution?
![](normal.png)
--

### The Central Limit Theorem (CLT)

- The CLT states that the sums of a set of random variables `$(X_1, X_2, X_3, ..., X_n)$` is normally
distributed no matter the distribution the individual X's were sampled from,
as long as they were sampled from __identical distributions__.

---
# A simulation experiment

`\begin{align*}
Y_{i} = \sum\limits_{j=1}^{j=m} X_{ij} \alpha_{j} + \epsilon_i
\end{align*}`

- For a given individual ( `$i=1$` ) with a number of loci ( `$m=1,000$` )

- Each allele is `$X_j \in (A, a)$` , with the probability of `$p$` or `$q=1-p$`

- The effect of `$j$`th allele ( `$\alpha_j$` ) can be samples from any distribution (e.g., _uniform distribution_)

According to the CLT, if `$m$` is __sufficiently large__, the sum is normally distributed.

```r
m <- 1000
## for each allele, the chance of A or a is equal to 0.5
x <- rbinom(n=m, size=1, prob=0.5)
## sample effect from a uniform distribution:
a <- runif(n=m)
y <- sum(x*a) + 0
y
```

```
## [1] 243.8146
```

---
# A simulation experiment

`\begin{align*}
Y_{i} = \sum\limits_{j=1}^{j=m} X_{ij} \alpha_{j} + \epsilon_i
\end{align*}`

```r
set.seed(1234) # seed for random number generator
m <- 1000
n = 2000 # simulate a population of 2,000 individuals
out <- c() # create an empty vector
*for(i in 1:n){
  x <- rbinom(n=m, size=1, prob=0.5) ## for each allele, the chance of A = 0.5
  a <- runif(n=m) ## sample effect from a uniform distribution:
  y <- sum(x*a)
  out <- c(out, y)
}
#shapiro.test(out) # W = 0.99928, p-value = 0.6622

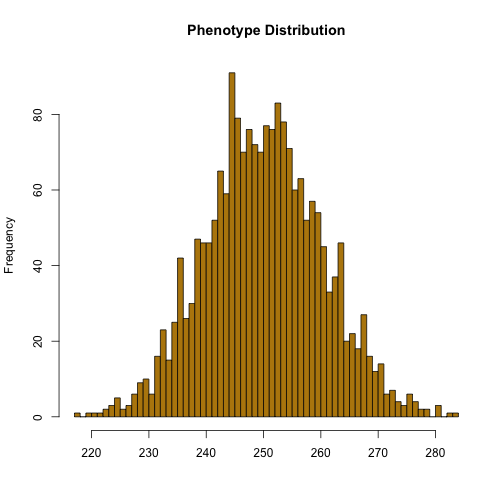

hist(out, breaks=50, col="#b8860b", main="Phenotype Distribution", xlab="")
```

---
# A simulation experiment

`\begin{align*}
Y_{i} = \sum\limits_{j=1}^{j=m} X_{ij} \alpha_{j} + \epsilon_i
\end{align*}`

```r
set.seed(1234) # seed for random number generator
*m <- 2
n = 2000 # simulate a population of 2,000 individuals
out <- c()
for(i in 1:n){
  x <- rbinom(n=m, size=1, prob=0.5) ## for each allele, the chance of A = 0.5
  a <- runif(n=m) ## sample effect from a uniform distribution:
  y <- sum(x*a)
  out <- c(out, y)
}
#shapiro.test(out) # W = 0.91117, p-value < 2.2e-16

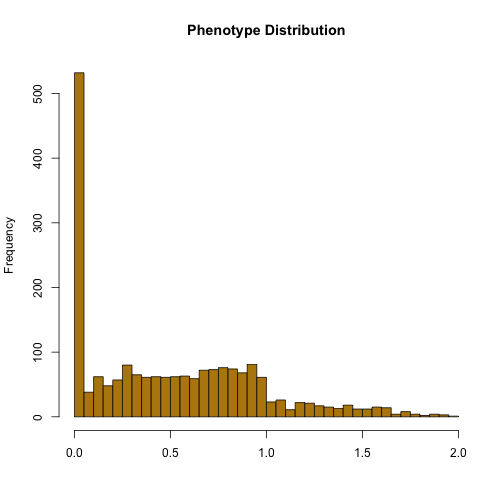

hist(out, breaks=50, col="#b8860b", main="Phenotype Distribution", xlab="")
```

---
# Probability Density

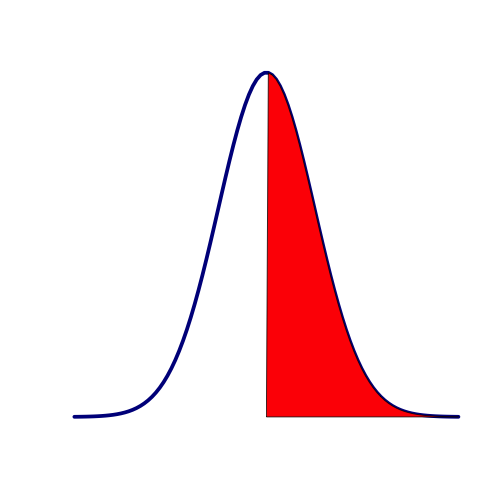

For a continuous trait, i.e., kernel number per ear (raning from 0 to 1,000), what is the `$Pr(Y=100)$`?

Assuming **wheat plant height** in a population is normally distributed, with m = 30 inch, sd=5.
Question: `$Pr(30 < Y \leq 50)$`?

Using the __probability density function__ (or **pdf**) and integration, we can calculate the probability that Y is contained in a certain bracket as:

`\begin{align*}
Pr(30 < Y \leq 50) = \int_{30}^{50} f(y)d_y
\end{align*}`

---
# Expectation and variance

Define the random variable `$X$` (i.e. for genotype) which counts the number of allele `$A$`.
`\begin{align*}
  X &=
  \begin{cases}
    2 & \text{if } AA  \text{ with frequency } p^2 \\
    1 & \text{if } Aa \text{ with frequency } 2p(1-p) \\
    0 & \text{if } aa \text{ with frequency } (1-p)^2
  \end{cases} \\
\end{align*}`
where `$p$` is the allele frequency of `$A$`.

Then, according to *Formula (1)* in the Note:

`\begin{align*}
E(f(X)) = \sum\limits_{i=1}^kf(x_i)Pr(X = x_i)
\end{align*}`

Expected value of `$X$`:

`\begin{align*}
E[X] &= 0 \times (1 - p)^2 + 1 \times [2p(1-p)] + 2 \times p^2 = 2p \\
\end{align*}`

---
# Expectation and variance

Define the random variable `$X$` which counts the number of allele `$A$`.
`\begin{align*}
  X &=
  \begin{cases}
    2 & \text{if } AA  \text{ with frequency } p^2 \\
    1 & \text{if } Aa \text{ with frequency } 2p(1-p) \\
    0 & \text{if } aa \text{ with frequency } (1-p)^2
  \end{cases} \\
\end{align*}`
where `$p$` is the allele frequency of `$A$`.

Expected value of __ `$X^2$`__:

`\begin{align*}
E[X^2] &= 0^2 \times (1 - p)^2 + 1^2 \times [2p(1-p)] + 2^2 \times p^2 \\
&= 2p(1-p) + 4p^2 \\
\end{align*}`

Thus, the variance of allelic counts is

`\begin{align*}
Var(X) &= E[X^2] - E[X]^2 \\
&= 2p(1-p) + 4p^2  - (2p)^2\\
&= 2p(1-p)
\end{align*}`

---
# Alternative coding

Define the random variable `$X$` as below:

`\begin{align*}
  X &=
  \begin{cases}
    1 & \text{if } AA  \text{ with frequency } p^2 \\
    0 & \text{if } Aa \text{ with frequency } 2p(1-p) \\
    -1 & \text{if } aa \text{ with frequency } (1-p)^2
  \end{cases} \\
\end{align*}`
where `$p$` is the allele frequency of `$A$`.

Then,
`\begin{align*}
E[X] &= -1 \times (1 - p)^2 + 0 \times [2p(1-p)] + 1 \times p^2 \\
&= −(1 − 2p + p^2) + p^2 = 2p-1 \\
E[X^2] &= (-1)^2 \times (1 - p)^2 + 0^2 \times [2p(1-p)] + 1^2 \times p^2 \\
&= 1 − 2p + p^2 +p^2  = 2p^2 − 2p + 1 \\
\end{align*}`
Thus, the variance of allelic counts is
`\begin{align*}
Var(X) &= E[X^2] - E[X]^2 \\
&= 2p^2 − 2p + 1 − (4p^2 − 4p + 1)\\
&= -2p^2 + 2p = 2p(1-p)
\end{align*}`

---
# Examples for probabilities

Two variables: Genotype and Milk Yield (MY)

| Genotype (G) | `$MY \leq 100$` | `$100 < MY \leq 300$` | `$MY > 300$`  | Marginal `$Pr(G)$`  |
| :-------: | :-------: | :-------: | :-------: | :-------:|
| aa      | 0.10 | 0.04 |  0.02  | 0.16    |
| Aa     |  0.14 | 0.18 | 0.16 | 0.48 |
| AA | 0.06 | 0.10 | 0.20 | 0.36 |
| Marg. Prob.|  0.30 | 0.32 | 0.38 | 1.00 |

### Joint Probability

Two random variables to occur together.

- What is the joint probability of `$Pr(G=aa, MY > 300)$`?

---
# Examples for probabilities

Two variables: Genotype and Milk Yield (MY)

| Genotype (G) | `$MY \leq 100$` | `$100 < MY \leq 300$` | `$MY > 300$`  | Marginal `$Pr(G)$`  |
| :-------: | ------- | ------- | ------- | ------- | ------- |
| aa      | 0.10 | 0.04 |  0.02  | 0.16    |
| Aa     |  0.14 | 0.18 | 0.16 | 0.48 |
| AA | 0.06 | 0.10 | 0.20 | 0.36 |
| Marg. Prob.|  0.30 | 0.32 | 0.38 | 1.00 |

### Marginal Probability

A sum of **mutually exclusive** and **exhaustive** set of events.

- What is the marginal probability of `$Pr(G=Aa)$`?

---
# Examples for probabilities

Two variables: Genotype and Milk Yield (MY)

### Conditional Probability

$$
Pr(X = x | Y = y) = \frac{Pr(X = x, Y = y)}{ Pr(Y = y)}
$$

- What is the conditional probability of `$Pr(MY \leq 100 | G=Aa)$`?
